Web Message To Unity

1. Create your HTML Page​

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <script>
        function SendJsonToUnity()
        {
            var data = {
                str_value : "hello uwebview2",
                int_value: 100,
                float_value: 1.23
            }
            window.chrome.webview.postMessage(data);
        }
    </script>
</head>
<body>
    <h1 style="color:red">Test JavsScirpt</h1>
    <button onclick="SendJsonToUnity()">Send Message To Unity</button>
</body>
</html>

webtounity

warning

Note: You do not need to manually convert to a JSON string; simply pass an object parameter, and it will be automatically converted internally.

2.Create your unity script​

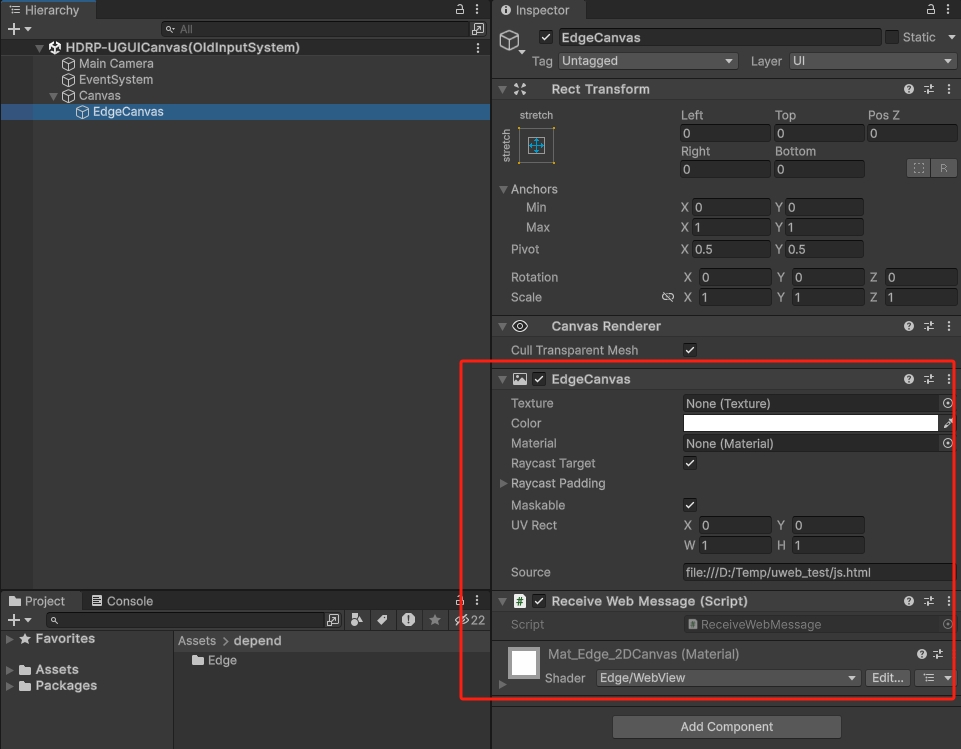

You need to create a script that implements the IEdgeMessageReceived interface and attach it to the same GameObject as EdgeCanvas!!!

danger

If it is not the same GameObject, the message cannot be received.

using UnityEngine;

public class ReceiveWebMessage : MonoBehaviour, IEdgeMessageReceived
{
    public void OnMessageReceived(string msg)
    {
        Debug.Log(msg);
    }
}

webtounity

Run this demo, click the SendJsonToUnity button, and Unity will receive the following message

webtounity
